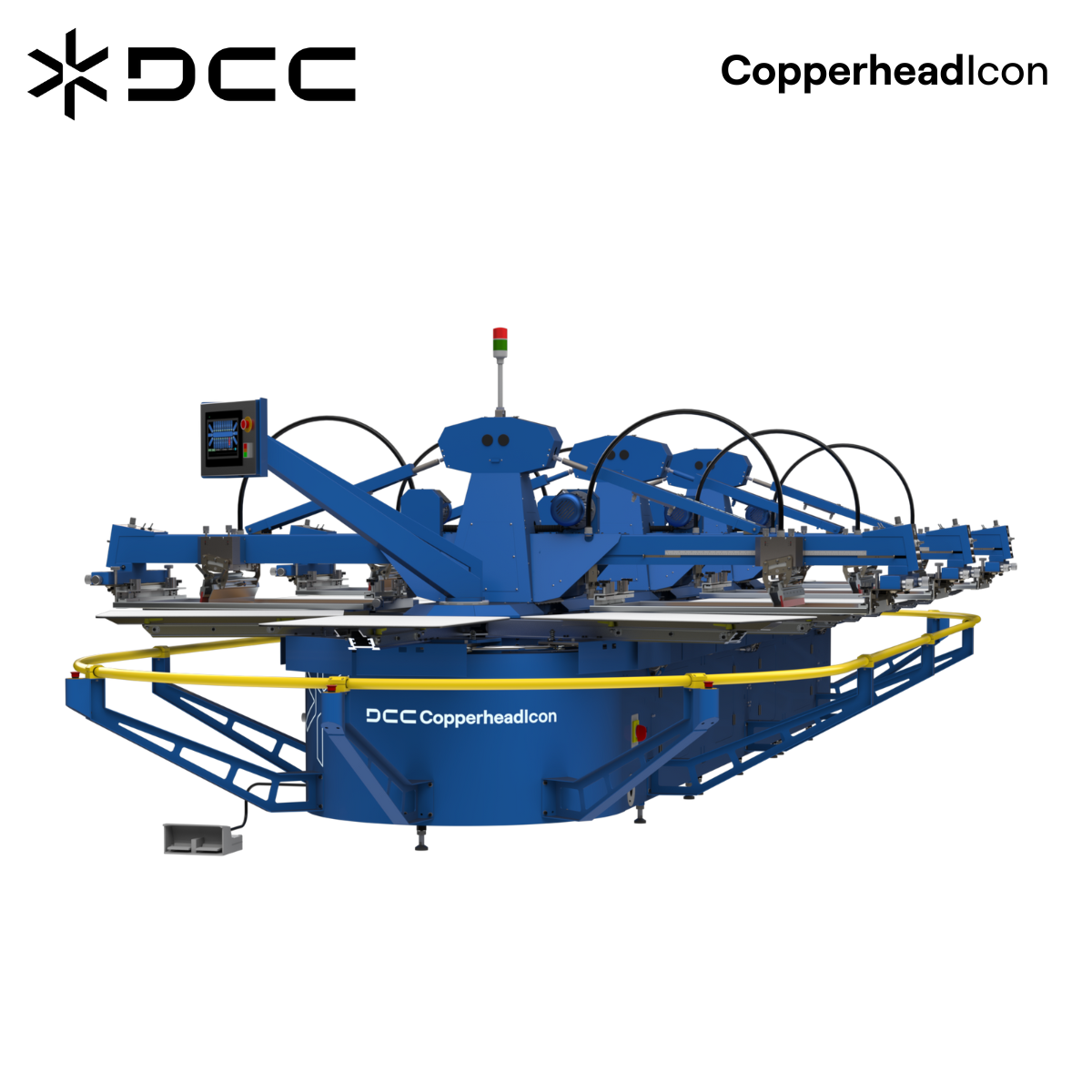

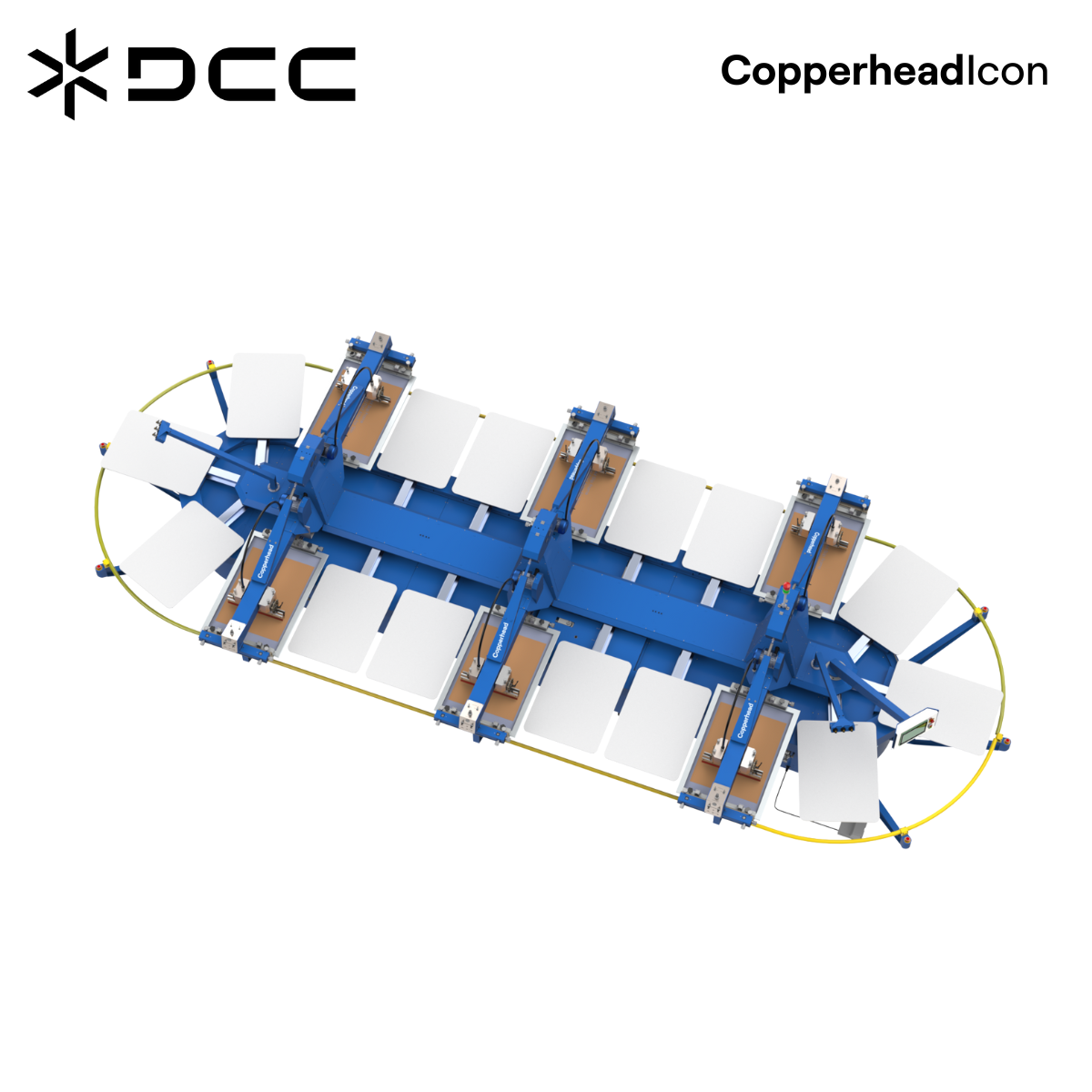

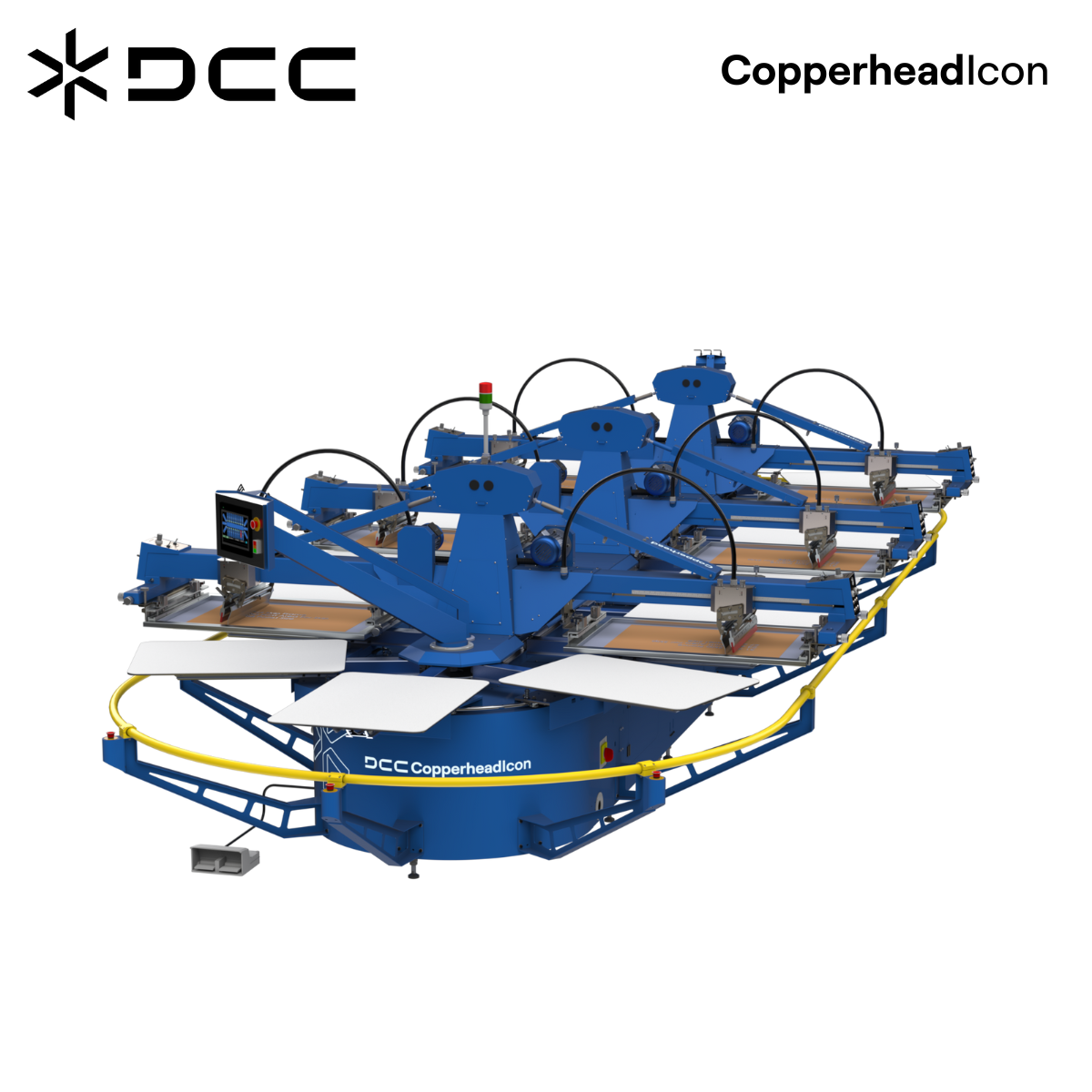

Copperhead Icon automatic screen printing press

M&R Global’s Copperhead Icon automatic oval screen printing press combines high volume throughput, and durable construction with the latest features in oval press design. The Icon comes standard with electronic printheads, pneumatic frame locks, independent controls for print & flood speeds, and the full suite of automatic programming that work in either clockwise or counter-clockwise printing configurations.

Download brochure for more details:
Download Get Quote
Features:
1. Standard Image Size: 56 x 71 cm (22” x 28”)
2. Standard Pallet Size: 60 x 89 cm (23.5” x 35”)
3. Servo Indexing System
4. Centralized pallet locking system for precise registration
5. Auto tensioning chain mechanism to increase life of machine
6. High-Resolution Touchscreen Control Panel with Easy-to-use, Icon-based Logic and Built-in Tutorial Screens


Icon comes in a standard Print/Flash/Cool (PFC) configuration that is one of the most popular choices preferred by printers around the world. The Copperhead Icon is modifiable up to 62 station configurations to accommodate different printing and flashing needs and the indexing system includes an auto-tensioning feature on the chain to minimize wear.
